SV06 ACE/SV06 PLUS ACE Replacement Stepper Motors

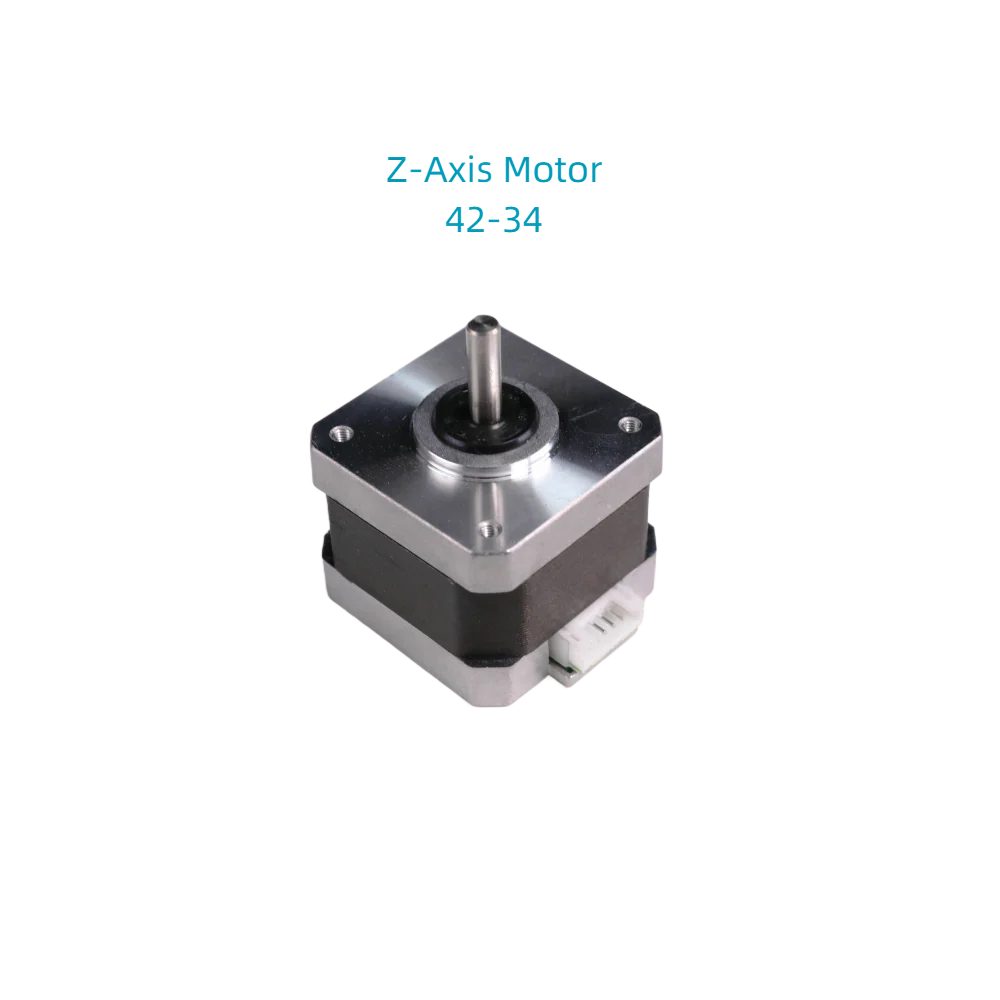

Z-Axis Motor (42-34)
Material: Metal + Plastic
Dimensions: 110*80*65mm
Step Angle: 1.8°
Rated Voltage: 2.6V
Rated Current: 1.3A
Operating Temperature: ≤80°C

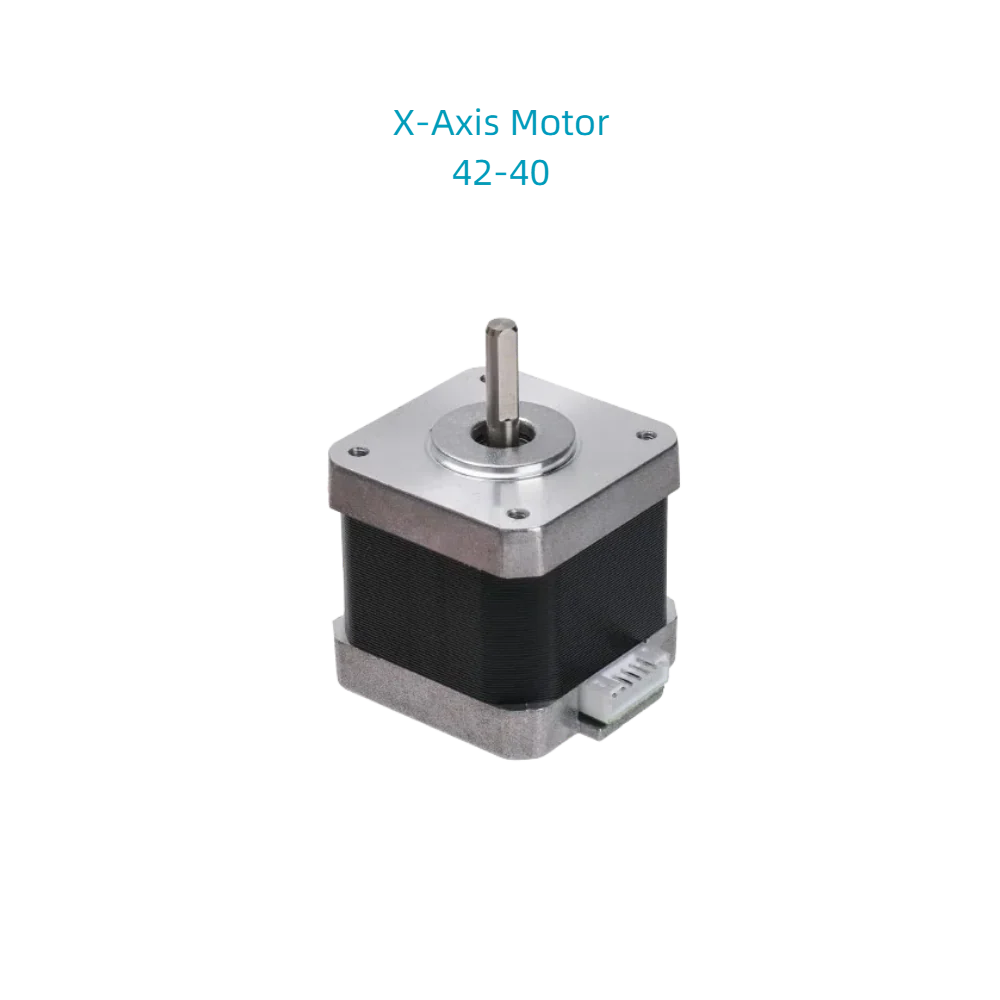

X-Axis Motor (42-40)
Material: Metal + Plastic
Dimensions: 110*80*65mm
Step Angle: 1.8°
Rated Voltage: 1.6V
Rated Current: 1.5A
Operating Temperature: ≤80°C

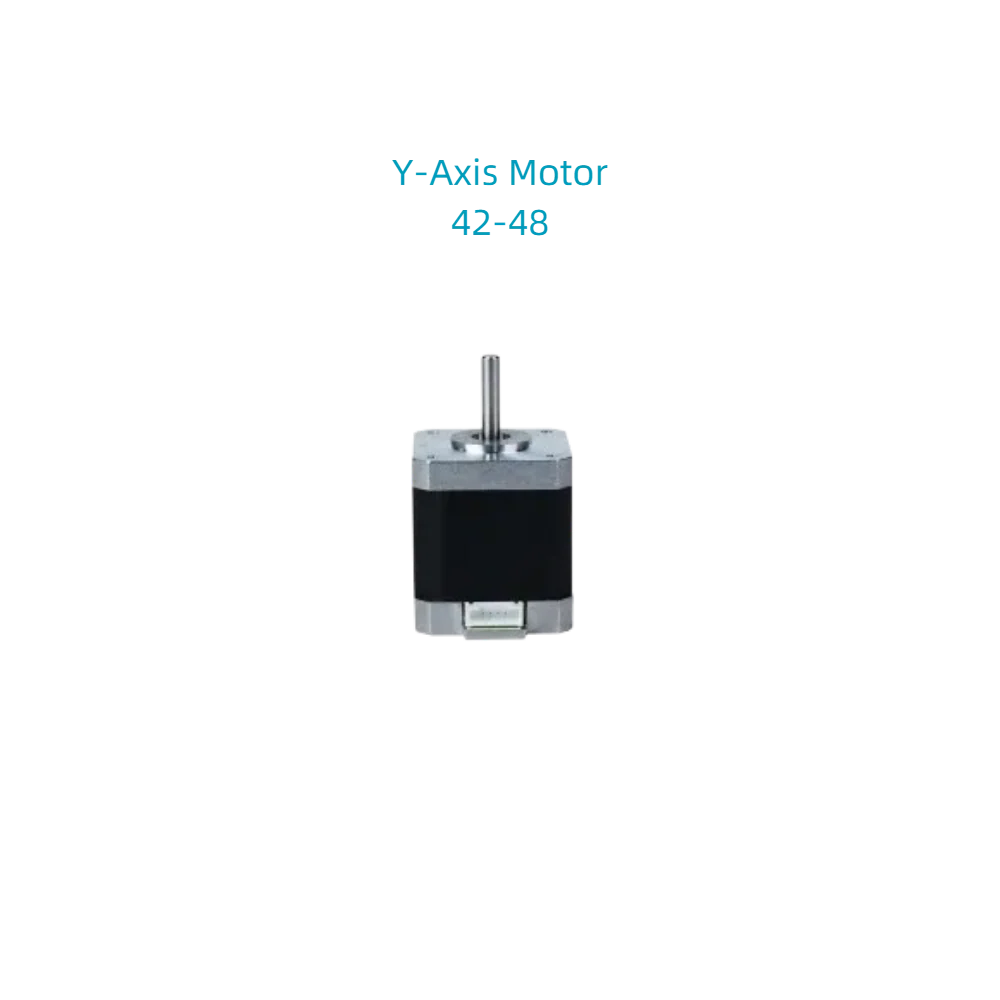

Y-Axis Motor (42-48)
Material: Metal + Plastic
Dimensions: 130*80*70mm
Step Angle: 1.8°
Rated Voltage: 1.23V
Rated Current: 1.5A
Operating Temperature: ≤80°C
(Not compatible with SV06 PLUS ACE)

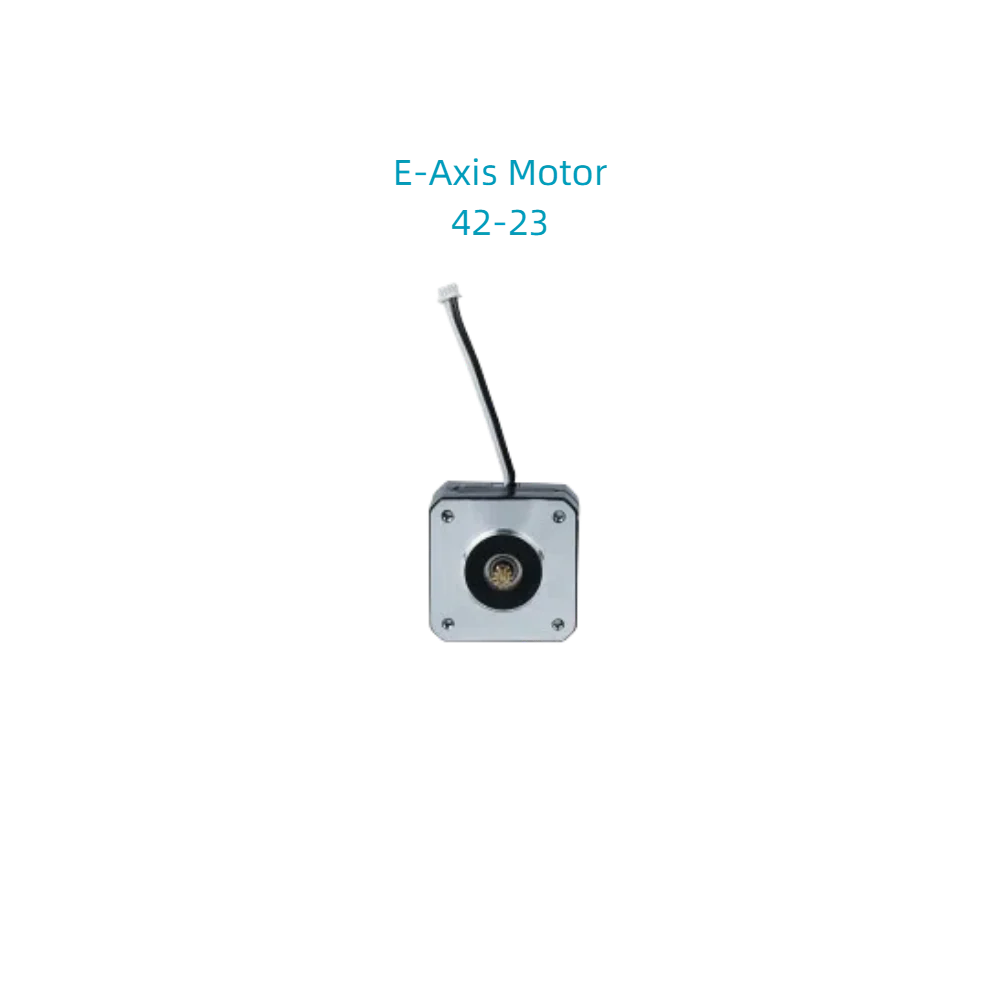

E-Axis Motor (42-23)
Material: Metal + Plastic
Dimensions: 110*80*65mm
Step Angle: 1.8°
Rated Voltage: 3.7V DC
Rated Current: 1.0A
Operating Temperature: ≤80°C
